Timloc Roll Out Dry Fix Ventilated Hip Kit - 310 x 6000mm
Product Description
Perfect for both new builds and retrofit projects, Timloc’s Roll Out Dry Fix Ventilated Hip Kit has been designed to provide long lasting and reliable protection / ventilation for slate, concrete, or clay hip tiles. As an alternative to traditional mortar bedding this dry fix kit allows for a quicker and cleaner installation with the added benefit of being virtually maintenance free without sacrificing quality. Produced to allow for 5000mm²/m hip ventilation if required, this kit helps prevent the entry of large insects or vermin and the 70mm wide ridge union widths also ensures additional water bar protection.
Overview of Timloc Roll Out Dry Fix Ventilated Hip Kit
- Convenient ‘1 pack’ mechanical fix solution for roof hip installations
- Preassembled fixing screws and clamping plates included
- Ridge union with adjustable clip positions for ridge tile thickness
- Universal ridge batten strap allows kit to be used on most types of slate, concrete, and clay roof tiles
- Protects against wind uplift, water ingress and general deterioration whilst also preventing the entry of large insects’ birds and vermin into the roofline
- Provides 5000mm²/m of ridge ventilation
- Easy, fast, and clean installation
- Strong, malleable and corrosion resistant aluminium flashing secured to a 6m roll
- 55mm ridge union width provides additional water bar protection
- Stylish design maintains smart appearance
- Not impacted by building settlement
- Complies with all relevant regulations and standards
- Available in black, terracotta or brown. All kits are supplied with black ridge unions and clips
Common Questions About This Kit
Where can I Use This Kit?
This kit is perfectly suited for new builds and retrofit projects, can be used with slate, concrete, or clay hip tiles as well as round or angled hip tiles. This kit can be installed on most pitched roof types from 15-55 degrees. When installing a minimum roll membrane overlap of at least 150mm should be allowed. For further guidance, refer to Timloc’s data sheet by clicking here.

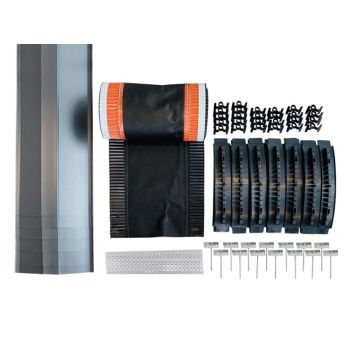

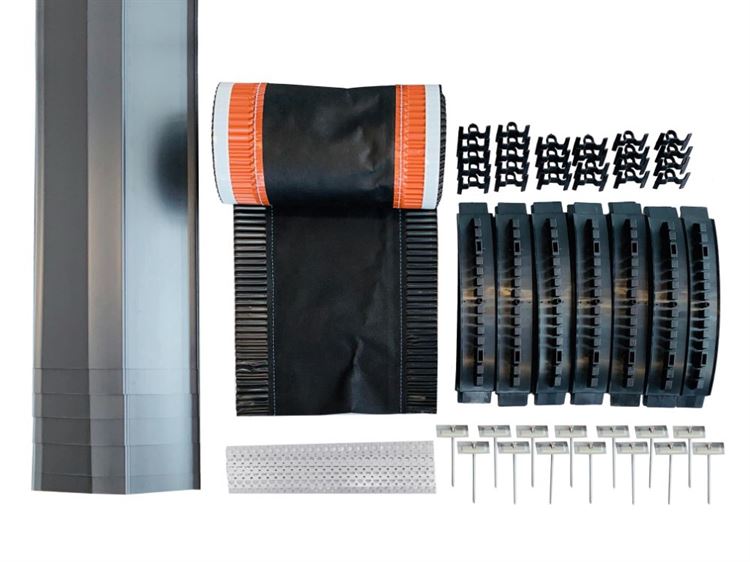

What is Included in This Kit?
-
1x6m vent roll membrane with self-adhesive flashing
-
6x hip trays
- 13x fixing screws and clamping plates
- 13x ridge unions
- 26x ridge union clips
- 10x ridge batten straps
Have More Questions About This Kit?
If you have any questions, don’t hesitate to get in touch with our award-winning team. They’ll help you pick the ideal product for your project, whether you’re revitalising an existing property or are tacking a larger new build. You can get in touch by calling 01295 565 565 or using our online live chat.
Product Specifications
| SKU | 547HIP |
|---|---|
| Lead Time | 1-2 Days |
| Brand | Timloc |
| Overall Length | 6000 mm |
| Overall Width | 320 mm |
