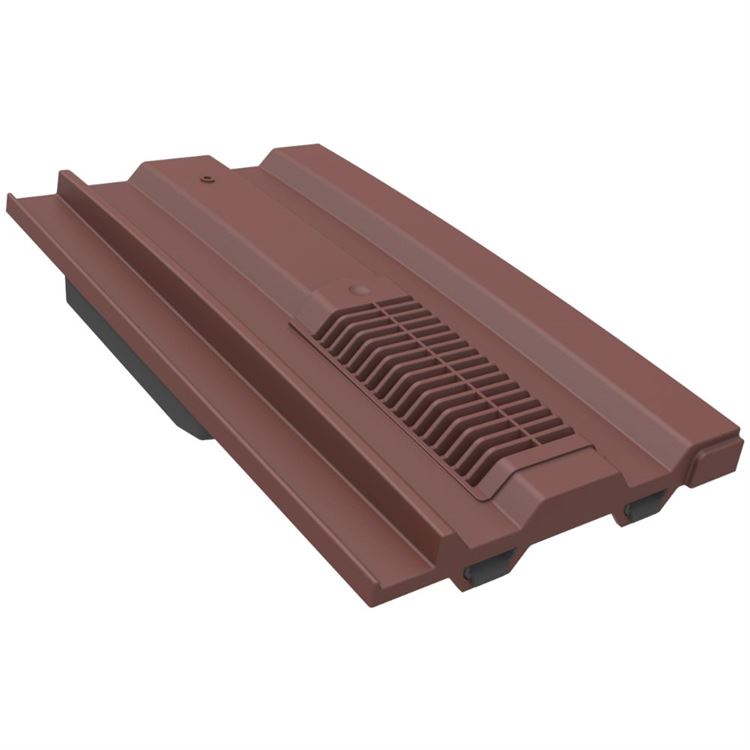

Mini Castellated Tile Vent - 390 x 230mm (Pack of 6)

Reasons why homeowners choose this product:

  • Great coverage. Offers an overall width of 230mm and overall length of 390mm.
  • Award winning customer support. Speak to our team online or by phone
Special Price £131.14 Regular Price £162.61
Call to Order
Estimated Delivery: 2-3 Days

4.4


8082 Reviews

Gold Trusted Service Award 2021

Product Overview

  • Great coverage. Offers an overall width of 230mm and overall length of 390mm.
  • Award winning customer support. Speak to our team online or by phone
Click here to view more product information. Speak to an Advisor

Complete Your Project With

More Info

Delivery

Reviews

Refunds

More Info

4.4


8082 Reviews

Gold Trusted Service Award 2021

View as Feet & Inch
More Information
SKUGTV-MC-CON
Lead Time2-3 Days
ManufacturerManthorpe
Overall Length390 mm
Overall Width230 mm

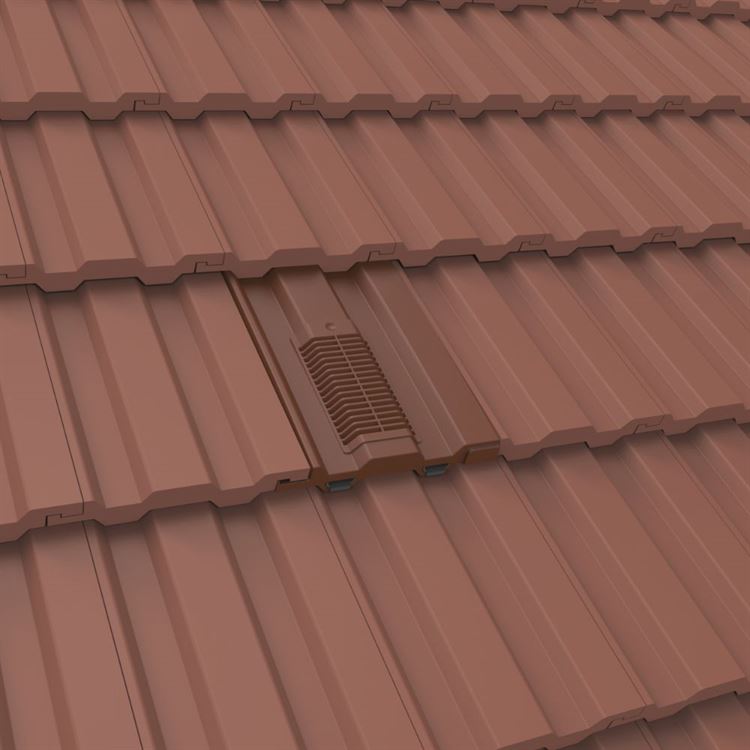

Designed to provide a quick and simple solution to your roof space ventilation problems, the Mini Castellated Tile Vent is the ideal choice for 15" x 9" low profile interlocking tiles. This vent requires no alterations making it simple and easy to install, able to replace any currently used tile. The tortured path through the internal weathering geometry maintains a constant airflow of 5000 mm² channelling any water ingress out of the tile vent, protecting your attic space from damp.



Overview of Manthorpe Mini Castellated Tile Vent

  • Ideal solution for ventilating your roof space for mechanical extraction as well as soil stack termination systems
  • Designed to suit leading tile makers
  • Provides approximately 5000 mm² of airflow through a 4mm louvred flyscreen grill
  • Carefully channels any water ingress out of the vent itself
  • Suitable for 15" x 9" low profile interlocking tiles
  • Independently tested under tough conditions in a wind tunnel
  • No batten cutting required



Common Questions About This Tile Vent

Which Tiles is This Vent Compatible With?

You’re able to use this tile vent alongside 15" x 9" low profile interlocking tiles from a range of top tile manufacturers such as Marley, Redland and Sandtoft. Available in a range of colours, the tile vent is designed to blend in with your roof deck too.


How Do You Install This Tile Vent?

This tile vent can be installed as long as your roof pitch is above 17.5 degrees, also allowing for a headlap under 125mm. Simply ensure that the vent is not being used to extract hot exhaust gases nor is placed close to other potentially hot elements such as flues or chimneys. If using this vent for mechanical extraction or soil stack/vent pipe termination; the 4" diameter outlet on the base can connect directly onto one of Manthrope’s flexible pipe range. The vent can be installed by a single person. For guidance on the installation, refer to Manthorpe’s step-by-step guide by clicking here.



Have More Questions This Tile Vent? 

If you have any questions, don’t hesitate to get in touch with our award-winning team. They’ll help you pick the ideal product for your project, whether you’re revitalising an existing property or are tacking a larger new build. You can get in touch by calling 01295 565 565 or using our online live chat. 

Technical Information

View as Feet & Inch
More Information
SKUGTV-MC-CON
Lead Time2-3 Days
ManufacturerManthorpe
Overall Length390 mm
Overall Width230 mm
