Fakro High Pivot Pitched Roof Window
Product Description

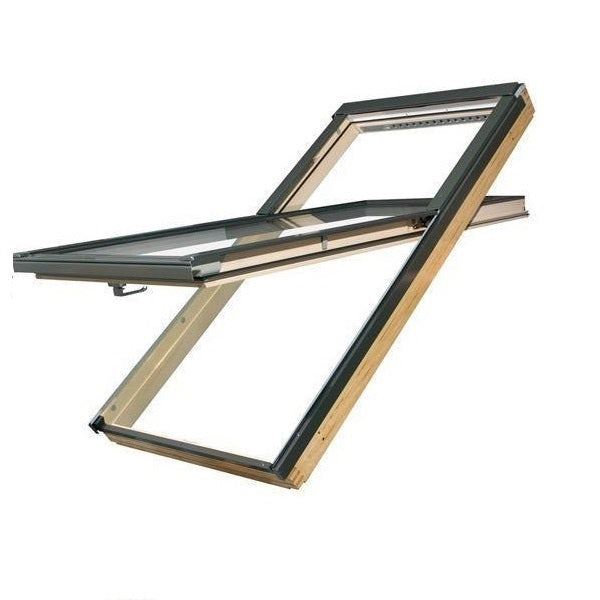

FAKRO High Pivot Pitched Roof Window
This high pivot pitched roofing window has been made by Fakro and provides unrivalled convenience and serves as a superb choice for homeowners. Rotating 180° to allow for easy cleaning, it can be opened to allow for even tall people to stand underneath with ease. With a fantastic aesthetic and plenty of character, it boasts the numerous benefits the Fakro brand has become known for, including excellent security thanks to the topSafe system, and near unrivalled durability thanks to the high-quality materials used in its production.
Overview of this High Pivot Pitched Roof Window
- Variety of internal finishes to pick from, including natural pine, white polyurethane, and white acrylic.
- Choice of both premium timber and affordable PVC frame construction to suit your budget and requirements
- Pick of double and triple glazing units to meet your desired level of thermal and acoustic insulation.
- Capable of installation on roofs with pitches as high as 90° when coupled with the appropriate flashing kit (min pitch: 15°)
- Includes the topSafe security system with reinforced hinges and locking mechanism to protect against intruders
- Includes a 20-year glazing guarantee and 10-year window guarantee for added reassurance
(Please note that exact specification of your window will be dependent upon the configuration. Please refer to the technical table to the right-hand side).
Help for Choosing Your High Pivot Pitched Roof Window
We understand that picking a roof window can be daunting. So, we’ve provided guidance on choosing your window size, glazing, and coating below. You can also find a wealth of information on this cenroof window in Fakro’s brochure.
Choosing Your Window Size
Fakro offer a range of common and unique sizes to suit various needs. This range of sizes allow you to find a window that suits the overall size of your room and style of your property whilst also offering the field of view and level of ventilation desired.
The measurements shown represent the length and width of the window’s outer frame. You will, therefore, need ample space in your roof deck to suit this measurement as well as any additional room needed for any flashing and insulation collar.
Choosing Your Glazing Unit
Fakro offer a range of glazing units to suit a variety of needs. These include glazing specially designed to reduce heat loss, minimise noise penetration, and provide added security. Many of these glazing units are available in double or triple glazing, with some also being available in quadruple glazing. This selection of glazing units provides you with an option whatever your budget and requirements.
U3 Glazing
As Fakro’s standard glazing option, the U3 glazing unit is ideal for those who require a basic level of thermal insulation. This double glazing features a toughened outer pane for added security and laminated internal pane for added safety should the glass shatter. A low emission coating on the inner glass also reduces the penetration of UV rays whilst an argon gas filling prevents heat transfer. Fakro’s U3 glazing unit is perfect for those who are on a budget but want to minimise heat loss throughout the year!
P2 Glazing
Consisting of a single external pane and double internal pane, the P2 glazing unit offers increased resistance against breakage. This double glazing features a low emission coating on the inner side of the laminated glass to reduce the penetration of UV rays as well as an argon gas filling to prevent heat transfer. A Warm TGI Spacer between the panes prevents thermal bridging and minimises condensation. Fakro’s P2 glazing unit is ideal for the security conscious homeowner who also want to keep energy bills low!
P5 Glazing
Much like the P2 glazing unit, Fakro’s P5 glazing provides added resistance against breakage through the combination of a single outer pane and double external pane. Unlike the P2 glazing unit, however, this glazing features an additional inner pane and is therefore classed as triple glazing. A low emission coating on the inner side of the laminated glass also reduces penetration of UV rays whilst a krypton gas filling reduces heat transfer. A Warm TGI Spacer between two of the panes prevents thermal bridging and minimises condensation. Fakro’s P5 glazing unit is the perfect choice for the security conscious homeowner who wants a higher level of thermal insulation!
U6 Glazing
Consisting of three panes of glass, the U6 glazing unit offers incredible levels of thermal insulation. These include a toughened external pane, toughened internal pane with a low emission layer, and inner pane that is formed from two laminated panes. This triple glazing also features an argon filling between the panes to prevent heat transfer and two Warm TGI Spacers to prevent thermal bridging and minimise condensation. Fakro’s U6 glazing unit is ideal for homeowners who want great thermal insulation whilst minimising the chance of condensation!
U8 Glazing
Consisting of four panes of glass, the U8 glazing unit provides the highest level of thermal insulation available. The inner pane is laminated for added resistance to breakage and the three remaining panes feature a low emission layer that reduces UV penetration. The panes of the quadruple glazing are separated by Warm TGI Spacers that prevents thermal bridging and condensation. This space is then filled with krypton gas that prevents heat transfer. Fakro’s U8 glazing unit is the perfect choice for homeowners who want the highest level of thermal insulation without the worry of condensation!
R1 Glazing
Consisting of a single external pane and specially laminated double internal pane, the R1 glazing unit offers increased noise penetration. This inner laminated glass features a layer of sound proofing epoxy resin as well as a low emission coating, the combination of which stops sound in its track whilst also preventing UV penetration. The space between the panes of this double glazing is filled with argon gas for additional sound reduction and a Warm TGI Spacer prevents thermal bridging and condensation. Each window fitted with this glazing also feature two seals and no air vents. Fakro’s R1 glazing unit is ideal for homeowners seeking peace in a bustling city and is particularly suited for bedrooms!
R3 Glazing
Much like the R1 glazing unit, Fakro’s R3 glazing provides added sound reduction by using a sound proofing epoxy resin that stops sound in its track. Unlike the R1 glazing, however, this glazing features an additional inner pane and is therefore classed as triple glazing. These panes are separated by Warm TGI Spacers that combat thermal bridging and condensation. This space is then filled by argon gas for further sound reduction. Each window fitted with this glazing also feature two seals and no air vents. Fakro’s R3 glazing unit is ideal for homeowners seeking peace in a bustling city whilst also benefitting from great thermal insulation!
Choosing Your Inner Coating
Fakro provide a choice of internal coatings to suit a range of needs. These include a natural pine, white acrylic, polyurethane and white PVC finish. Whilst each provide a slightly different aesthetic, some offer added functionality. This includes the polyurethane coating and white PVC frame, which are suited for rooms with high humidity such as kitchens and bathrooms.
Natural Pine Wood
Natural pine windows provide you with a traditional and premium aesthetic. The close grained redwood timber used by Fakro demonstrates the quality.
White Acrylic Coated Wood
White acrylic coated windows provide you with a modern and minimalist aesthetic. Beneath the durable coating, however, is Fakro’s close grained redwood timber.
White Polyurethane Coated Wood
White polyurethane coated windows also provide you with a modern and minimalist aesthetic. But unlike acrylic coated windows, they are ideal for rooms with high humidity. Beneath the durable coating, however, is Fakro’s close grained redwood timber.
White PVC
White PVC windows are also suited for rooms with high humidity, such as bathrooms. But the entire frame is constructed from durable PVC as opposed to timber.
Have a Question About This High Pivot Pitched Roof Window?
If you have any questions, don’t hesitate to get in touch with our award-winning team. They’ll help you pick the ideal product for your project, whether you’re revitalising an existing property or are tacking a larger new build. You can get in touch by calling 01295 565 565 or using our online live chat.
Product Specifications
| SKU | fakro-highpivot |
|---|---|
| Lead Time | 7-10 Days |
| Custom Made | Yes |
| Min Pitch | 15 ° |
| Max Pitch | 70 ° |
