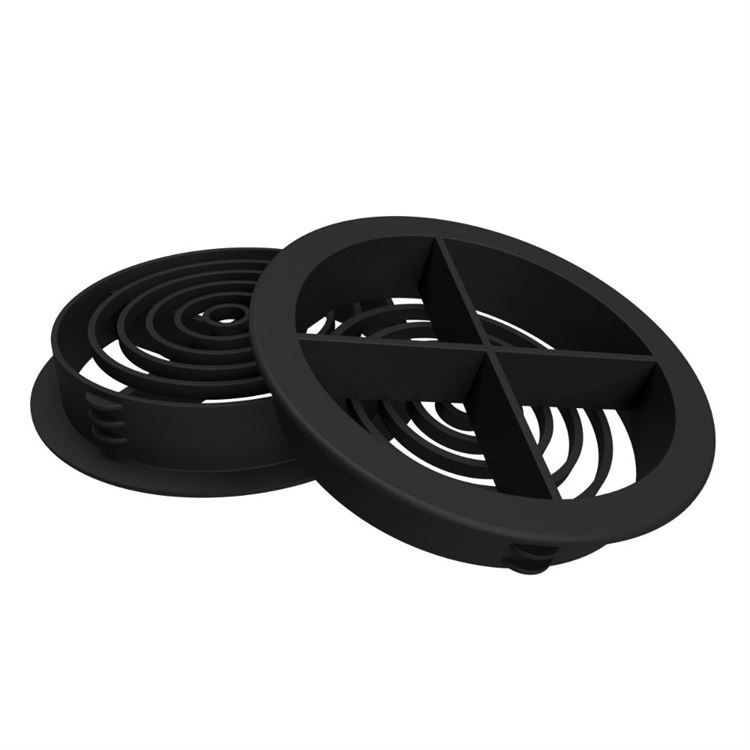

Manthorpe Circular Soffit Vent - 80mm x 16mm (Pack of 50)
Product Description
Manufactured from durable PVC material with an expertly-crafted design, the Manthorpe Circular Soffit Vent is a reliable choice for creating effective roof ventilation. The vent incorporates evenly spaced slots that are narrow enough to prevent blockages without restricting airflow for high-quality results. For use on new builds or with existing soffits, fitting is hassle-free with an easy push twist action which makes single person simple for DIYers and tradesmen.
Overview of the Manthorpe Circular Soffit Vent
- Expertly designed for easy fitting before or after the installation of soffit boards
- Manufactured using durable yet lightweight PVC material
- Incorporates an airflow passage with slots narrow enough to protect from large insects but wide enough to prevent blockages
- Simple standard fixing with a push twist action into a 70mm drilled hole
- Can be used to achieve 10,000mm²/m or 25,000mm²/m of free airflow
- Available in a range of colours to suit your fascia
- Free vent area of 2150mm²
Common Questions About This Circular Soffit Vent
What is a soffit vent?
A soffit vent is a roof ventilation system designed for use with a traditional soffit board. When combined with other forms of roof ventilation they help protect your home from damages to belongings, timber and attic insulation caused by temperature changes and moisture build-up.
How do you install circular soffit vents?
The standard fixing for this circular soffit vent is a push twist action into a 70mm (2.75”) diameter hole drilled into the soffit board. The circular soffit vent can be slotted into the soffit board before installation for new builds or alternatively retro-fitted into existing soffits.
For 10,000mm²/m of free airflow, vents should be fitted at 200mm centres. For 25,000mm²/m of free airflow, vents should be fitted at 86mm staggered centres.
How many circular soffit vents do I need?
The general rule for soffit ventilation is that at least one square foot of ventilation is required for every 150 square feet of attic space. There is an exception that it can be 300 square feet if it is shared between soffit vents and roof vents. Soffit vents should be evenly spaced on both sides of the roof under the edge.
Will soffit vents stop condensation?
Yes, soffit vents allow airflow throughout your loft and let warm air escape, reducing condensation and moisture-build up that could cause damage to your building.
How do you tell if an attic is properly vented?
Proper ventilation allows moisture and trapped heat to escape. Indicators that your attic may not be effectively vented include; hot ceilings on a warm day, thick ridges of ice on your eaves in winter and damp or frost which suggests warm, moist air is escaping.
Have More Questions About This Manthorpe Circular Soffit Vent?
If you have any questions, don’t hesitate to get in touch with our award-winning team. They’ll help you pick the ideal product for your project, whether you’re revitalising an existing property or are tacking a larger new build. You can get in touch by calling 01295 565 565 or using our online live chat.
Product Specifications
| SKU | G700-CON |
|---|---|
| Lead Time | 2-5 Days |
| Brand | Manthorpe |
| Overall Length | 16 mm |
| Overall Width | 80 mm |
Downloads
Installers Guide
